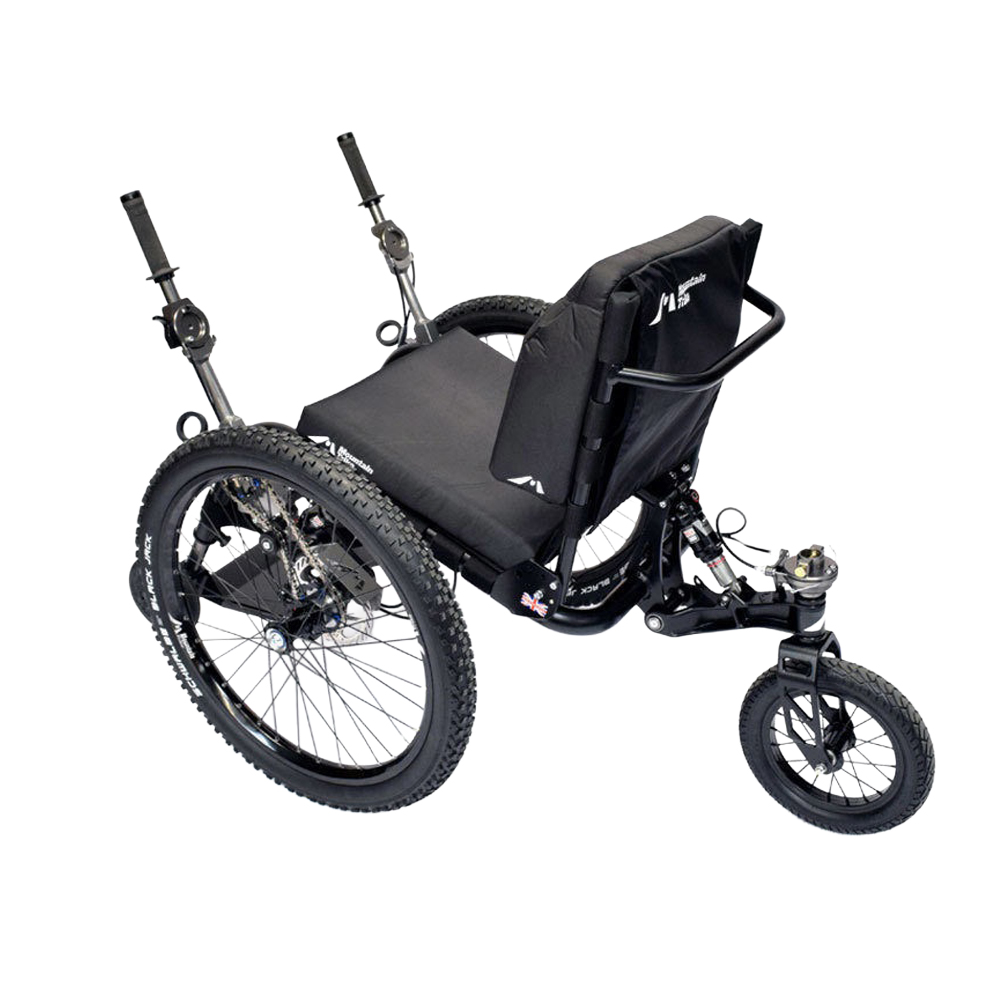

Mountain Trike EVO

The MT Evo has been developed working closely with our Tetraplegics, Quadriplegics, and other customers with limited hand function. It has the same excellent all terrain performance as the Mountain Trike but with even simpler controls – ideal for your outdoor every day use, whether it be a muddy woodland trail, a trip to the shops or a walk in the park. The unique lever drive system allows the rider to have clean dry hands whatever the terrain.

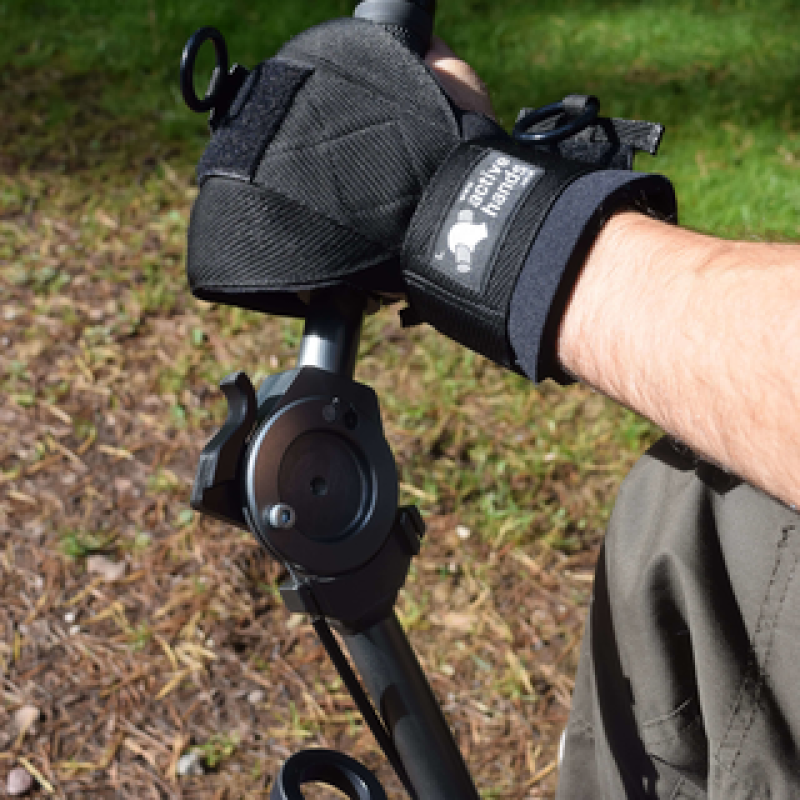

Brake Handle

A simple pivoting handle operates the disc brakes by moving your arm inwards. Recommended use with Active Hands gripping aids, the system requires no finger function to operate.

Direct Steering

The unique direct steering means that you can steer and drive the Trike with only one arm. Pivot left to go left, right to go right – simple! The steering gives excellent control for smooth turns and an easy ride across slopes.

Drive engagement

Ergonomic loops give a great easy to use method of drive engagement for a wide range of people with limited hand function.

Disc brakes

Give you great control and braking in all weather, over difficult ground and steep hills. Adaptable and adjustable just for you!

Air suspension

Gives you a smooth and comfortable ride when dropping off curbs, riding over cobbles, cracked pavements and tree roots but also means you can turn or travel across slopes safely and with confidence.

1. Length – 132cm Fully Assembled
2. Seat Width – 17inches
3. Seat Angle – 20 degrees ‘bucket’ for comfort and safety
4. Seat Cushion – Removable foam cushion (Size 40cm), wipe clean polyester fabric
5. Seat Height From Ground – 46.5cm
6. Seat Length – 44.7cm – 48.7cm
7. Footrest Height – Max foot rest height – 41cm to 48cm

8. Mountain Bike Wheel Size – 24 inches
9. Overall Width – 74cm
10. Weight – 20kg
11. Back Height – 37cm (also adjustable forwards or backwards)
12. For Transport – The seat back folds flat and the rear wheel folds underneath to form a cube for easy transportation. Not crash tested.
13. Rider – Maximum weight of rider is 100KG Maximum height of rider is 6’4
14. Fold – MT Evo can be folded into a cube for easy transportation
