PRECISION CONTROL
The innovative fork mechanism allows for easy customization of both height and length, ensuring a perfect fit for each rider’s individual needs.
NEXT-GEN GRAVEL
Thru axle now available on this model: offering more control, safety and precision in every condition. It increases frame stiffness, ensures perfect wheel alignment, and improves power transfer, ideal for tackling descents, rough terrain and high speeds with total confidence.
CLEAN LINES, STRONG FORM
A clean frame design with a single bent tube. Sleek, strong and made to impress.
FORM & FUNCTION

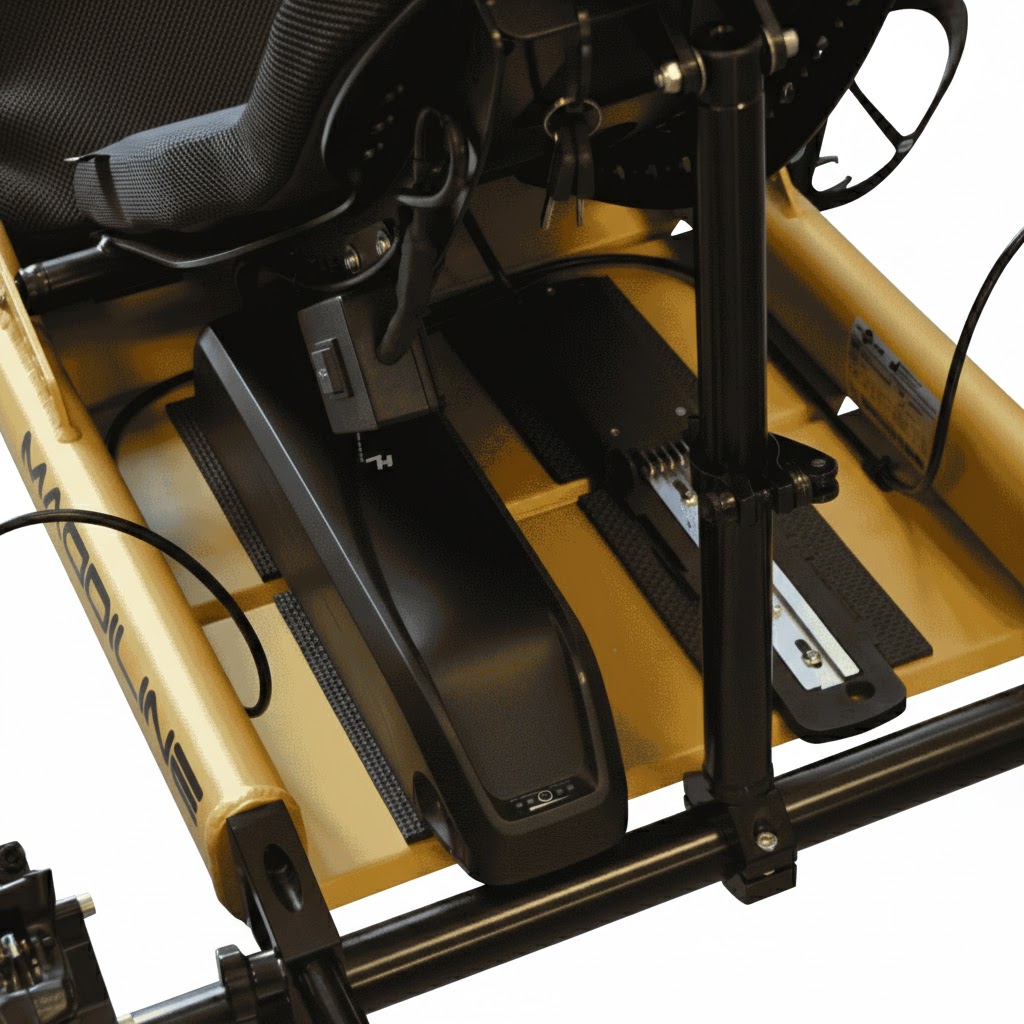

The batteries are mounted on a welded plate at the base of the handbike’s frame. This solution integrates structure and function: the plate also serves as the seat, providing stability and strength for gravel-terrain performance.
STOP WITH CONFIDENCE

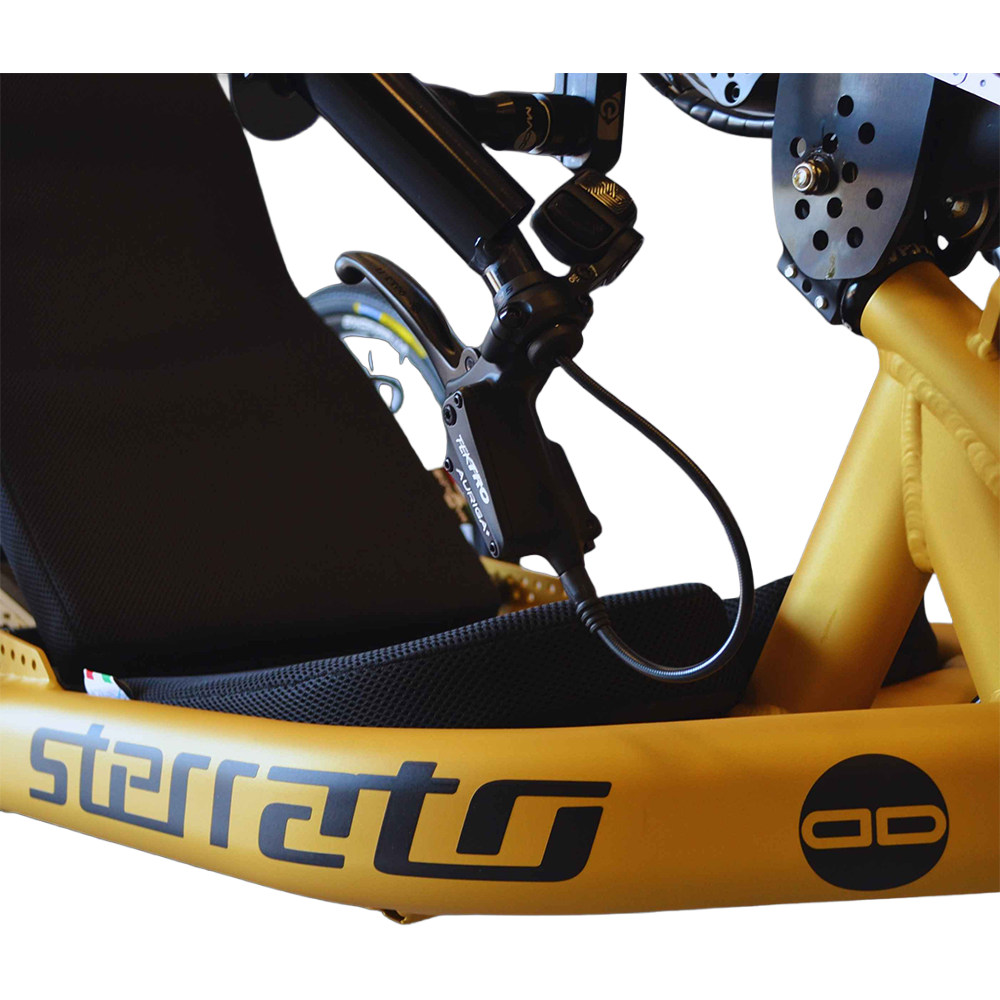

The Tektro brake lever for the rear brake is mounted on the left grip and controls two hydraulic disc calipers. For tetraplegic users, the lever can be installed on a support near the elbow, allowing the rear brake to be operated with the elbow itself. Completing the system is a parking brake, essential for safe and secure transfers.
ULTIMATE VERSATILITY
The innovative rear axle system allows quick switching between 27.5’’ and 20’’ wheels, offering practical adaptability for every terrain.
Frame
Aluminium alloy 7020
Fork
Aluminium alloy 7020
Electronic gear options (GCE)
SRAM GX AXS 1×12 max 52
SHIMANO DEORE Di2 1×12 max 51
SHIMANO GRX Di2 1×11 max 46
Mechanical gear options (GCM)
SHIMANO XT 1×11 max 46
SRAM GX 1×12 max 52
SRAM GX 1×11 max 46
Gear options for tetraplegics
SHIMANO GRX Di2 1×11 (GCE)
chin-operated or elbow operated
Front brake
Hydraulic disc brake Tektro, 220mm
Rear brakes
Dual hydraulic disc brake Tektro Auriga Twin Brake with integrated parking brake, 180mm
Braking options for tetraplegics
Front brake: Reverse brake or Tektro 220mm hydraulic disc brake mounted on a support for the left elbow
Rear Brake: Dual Tektro Auriga Twin hydraulic disc brakes with integrated parking brake, 180mm, mounted on a support for the riht elbow
Wheel size
27,5”/27,5”
27,5”/20”
Tires
27,5” x 35mm
20” x 1.7”
Front axle
Thru-axle 174mm x 20mm, M12 x 1.75
E-ASSIST SYSTEM
Motor
OLI SPORT PLUS 250W 85NM
Bafang BBS01B 250W 36V
Bafang BBS02B 500W 36V
Bafang BBS02B 750W 48V
Battery
36V 14aH
36V 17aH
48V 14aH
48V 17aH
Length
200cm (20”) / 220cm (27,5”)
Wheelbase
150cm (20”) / 155cm (27,5”)
Width without rear wheels
60cm
