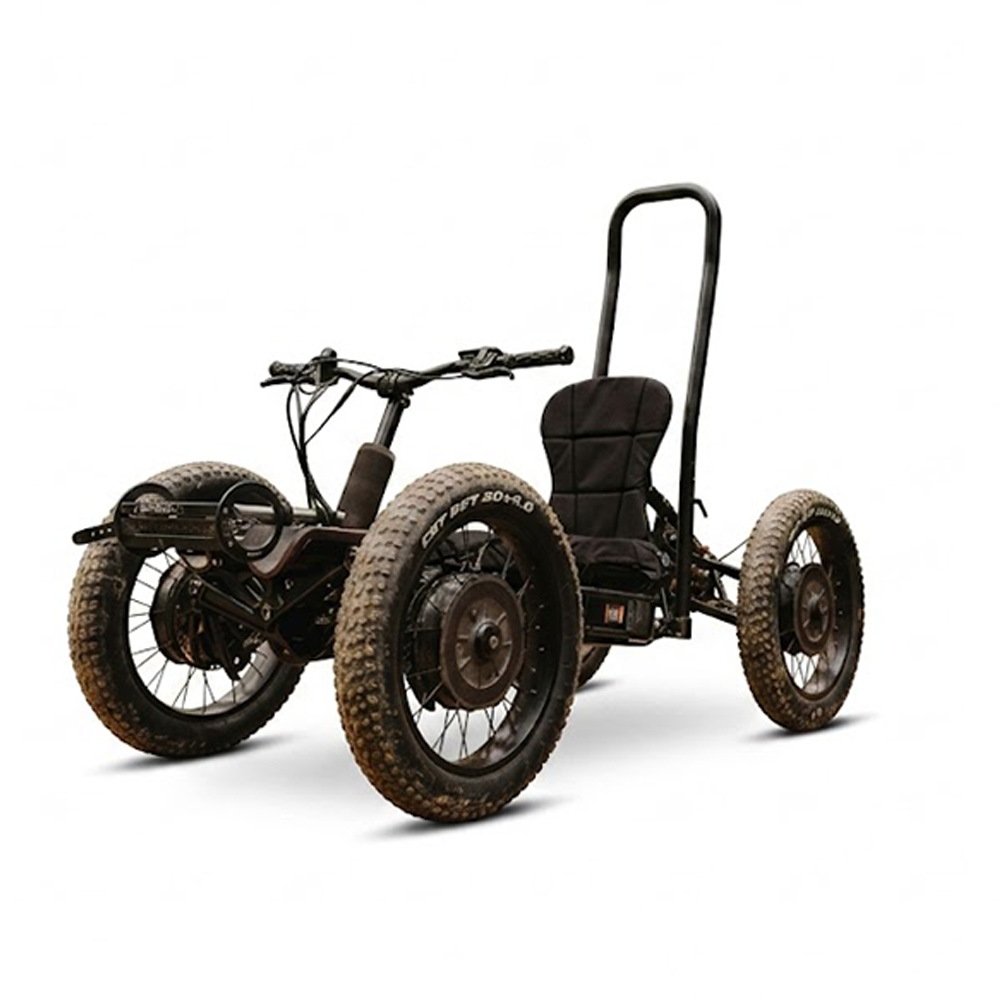

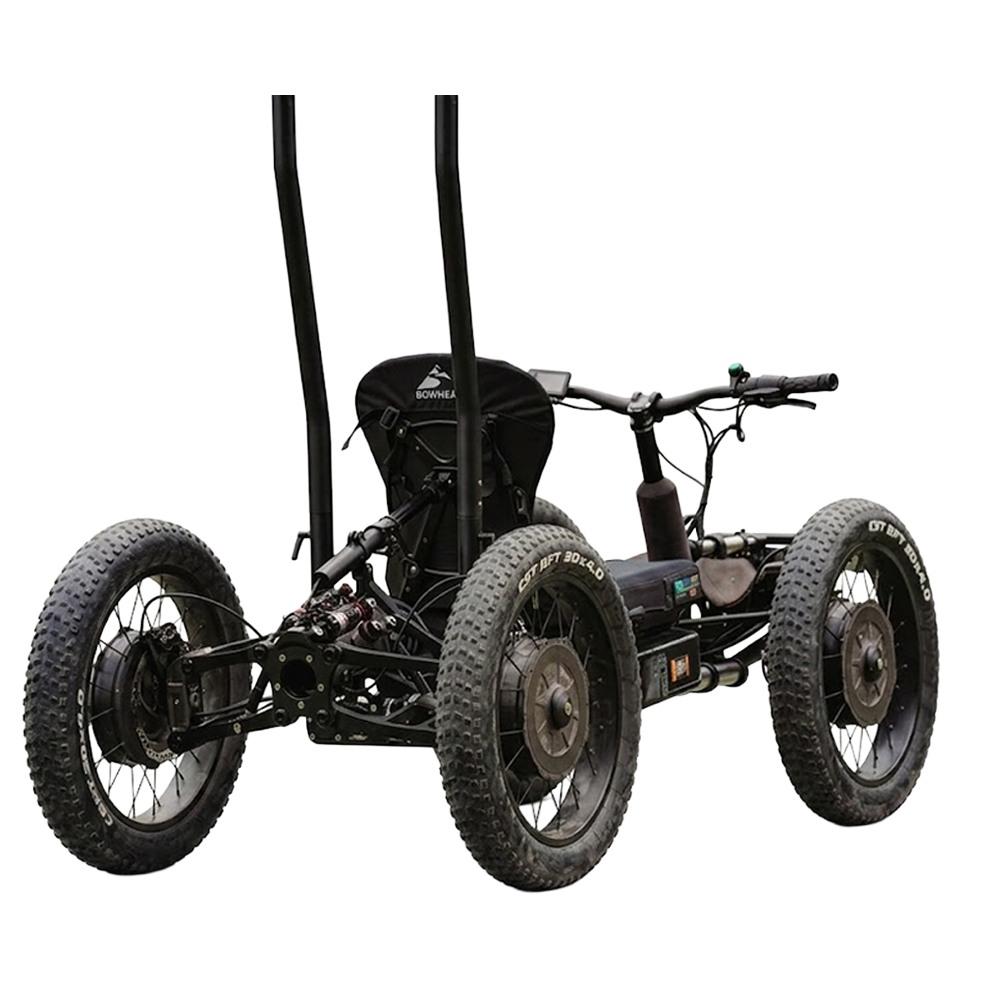

The Bowhead Ranger is the ultimate all-terrain adaptive bike for those who want to explore the outdoors in style and comfort. Whether you’re cruising with family, enjoying nature, or simply enjoying the freedom of the ride, the Ranger is built for you.
Engineered for those with limited hand function, spinal cord injuries, quadriplegia, or aging riders, this bike redefines what’s possible in outdoor accessibility. The Ranger is designed to offer greater stability and easier control for those who struggle with balance and upper-limb weakness. It features Bowhead’s unique, articulating front end that allows you to lean into turns and more easily navigate side slopes, but the Ranger has two wheels in the back to increase stability.
Outfitted with premium suspension and braking components from top mountain bike brands, the Ranger delivers a smooth, controlled, and capable ride on any terrain.
The Bowhead Ranger 4WD
Built with a four-wheel-drive system, near-silent direct-drive tech, and dual-battery capacity, it delivers unmatched stability and confidence on steep climbs, loose trails, and everyday outdoor adventures.
Whether you’re conquering technical singletrack, carrying gear around camp, or cruising with family, the Ranger 4WD is designed to take you further with fewer limitations.
Key Features:
True 4WD Traction Control: Four independent contact points grip the earth simultaneously. If the rear wheels break loose in sand, mud, or wet roots, the front wheels instantly pull you through.
Stealth & Silence: Powered by gearless Grin All-Axle hub motors with zero internal meshing gears. Enjoy pure traction with zero mechanical whine.
Relentless Crawling Torque: Specialised “slow wind” motor stators deliver massive low-end torque. Climb steeper, more technical terrain smoothly without bogging down or overheating.
Dual-Battery System: Twin 48V battery packs double your range and effortlessly handle heavy electrical loads. Key-switched, low-center-of-gravity cradles make removal and indoor charging quick and easy. Battery options include 2 x 15Ah as Standard, or 2 x 21Ah as an Upgrade option.
Reverse Mode: Reverse mode on the Ranger is a HUGE game changer! Maneuver on tight trails and get yourself out of any tricky situation.
Specifications
Length (tyre to tyre): 71 in
Wheelbase (axle to axle): 47 in
Width (external from axle to axle): 29 in (front) / 32 in (rear)
Height: 35 in
Frame: Titanium
Weight
2WD Model: 48kg
4WD Model: 56
Articulation
Base: Bowhead FLOW Bushing Front End
Upgrade: Bowhead FLOW Bearing Front End
Drive System
2WD Model: Dual rear hub motors (up to 1000W each)
4WD Model: GRIN All Axle Hub Motors installed in All 4 Wheels
Battery
2WD Model: Base: 15.5 Ah Battery / Upgrade: 22 Ah Battery *Can accommodate two batteries at once
4WD Model: Base: Dual 48V 15.5Ah / Upgrade: Dual 48V 21Ah
Quad control options available.
Wheels
2WD Model: 24”
4WD Model: 20″ x 4″
Roll Bar Compatible: Yes
