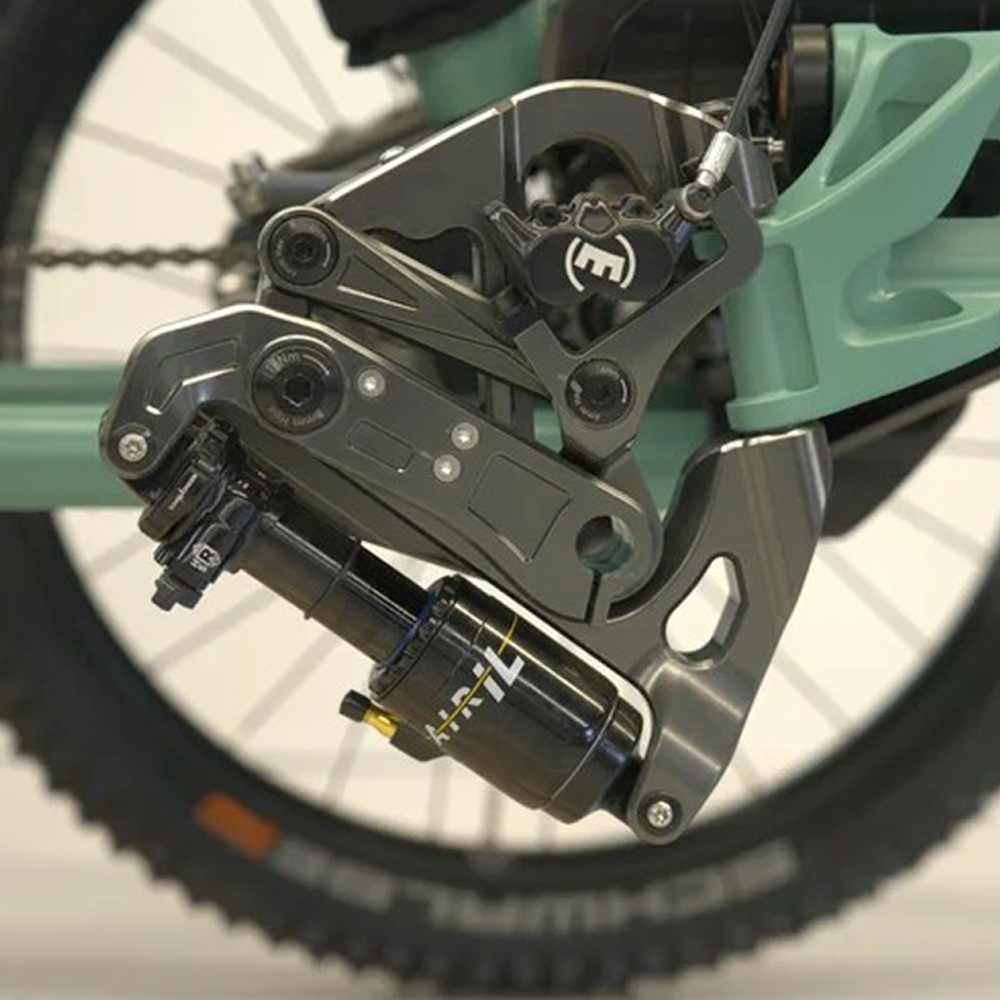

Two years of rigorous development and four generations of prototypes have led to the MoFlo – Bowheads most advanced front suspension system to date. Designed for the RX, Reach, and Ranger, the MoFlo delivers a massive leap in technical performance and rider ergonomics.
Engineering & Performance
Active Braking: Featuring a floating brake mount and refined anti-dive geometry, the MoFlo minimizes brake jack. This ensures your suspension stays active and articulates freely even under heavy braking on steep terrain.
50% More Travel: Increased vertical wheel travel by over 50% compared to previous generations, offering unmatched small-bump compliance and high-speed stability.
Enhanced Clearance: Optimised architecture provides extra hand clearance on the RX and increased ground clearance across all models for technical trail navigation.
Rider-Centered Design
Durability: Inverted shock orientation to protect the air valve from debris and impacts.
On-the-Fly Adjustments: The new valve position is more ergonomic, making it significantly easier for riders to make suspension adjustments while on the trail, or adjust air pressure.
Industry Standard: The MoFlo is designed around a 210×55 shock, ensuring robust performance and easy long-term serviceability.
Suspension Packages
Base: X-Fusion O2 Pro R

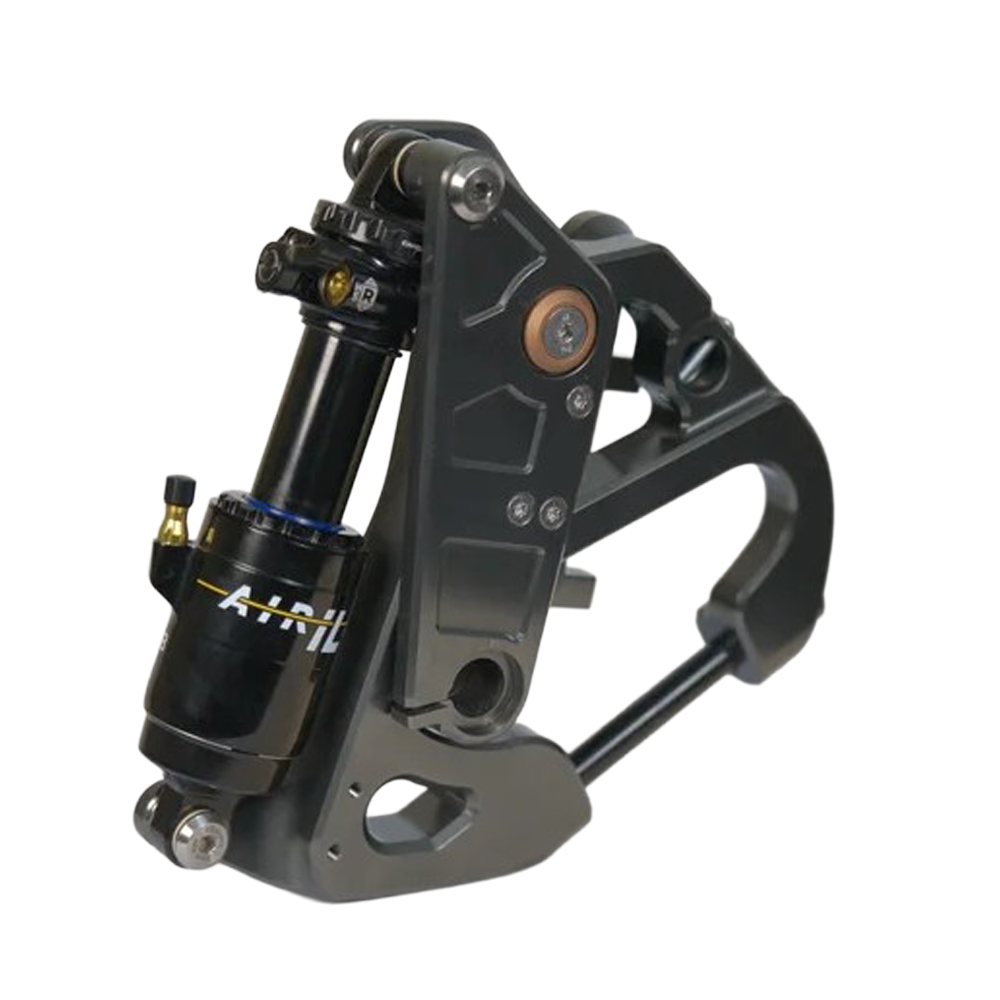

Upgrade: Cane Creek AIR IL

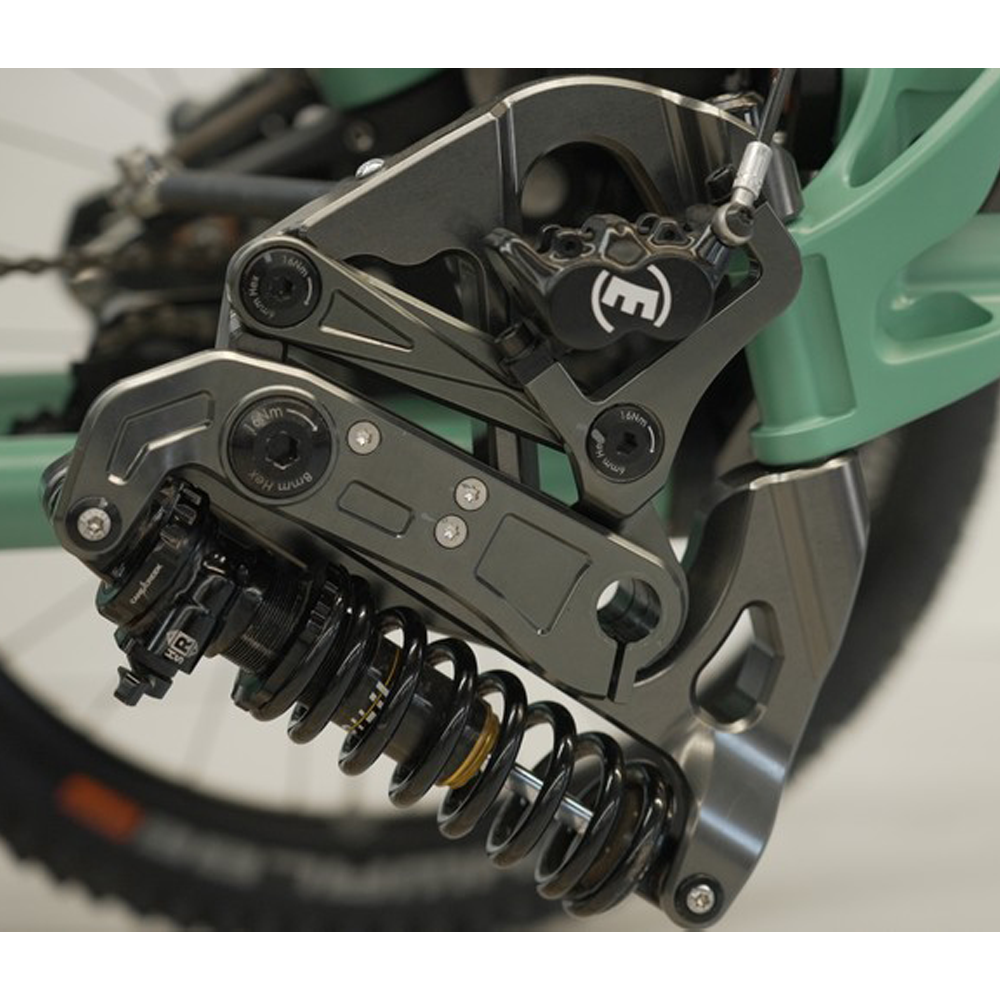

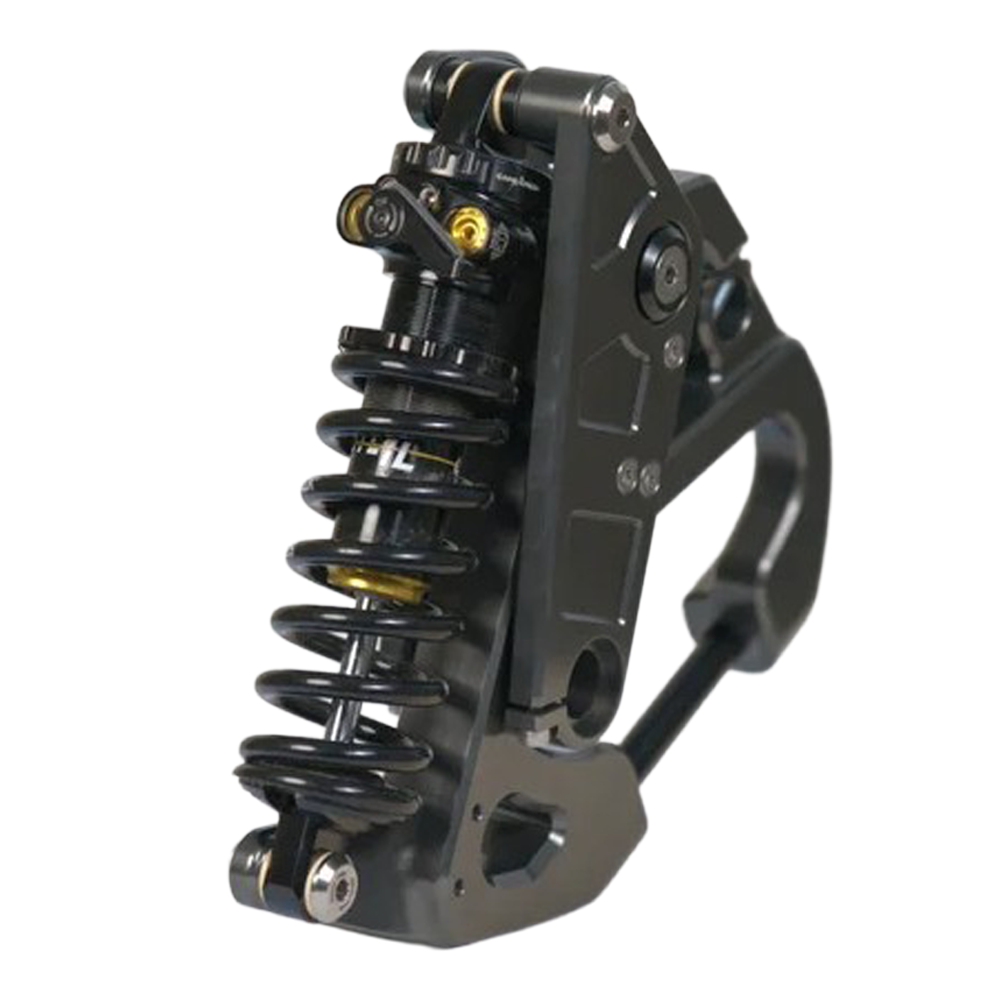

Premium: Cane Creek COIL IL
*Retrofit Parts Charge
Articulation Plate & Kingpin: The MoFlo system is fully compatible with the FLOW Bearing Front End, but because it subjects the system to much higher forces, we have upgraded the strength of the aluminum for these parts. Reach riders will need to purchase these higher-strength versions to handle the extra forces riders can exert into the system.
Uprights: These are required because they change the physical geometry and location of the front wheels to ensure compatibility with the MoFlo’s travel. (The RX already shares this geometry layout, which is why it doesn’t need these additional parts).
Compatibility & Requirements
Check Your Current Setup: The MoFlo system is exclusively compatible with the FLOW Bearing Front End.
Standard on RX: All RX models are equipped and ready for MoFlo.
Reach & Ranger bikes with Bushing Front End: If your bike is equipped with a Bushing Front End, a full front-end upgrade is required to install the MoFlo system. FLOW Bearing Front End can be purchased at this Link
Reach & Ranger bikes with FLOW Bearing Front End: While your bike has the compatible articulation assembly, the MoFlo system requires updated geometry and components. These users will still need to upgrade their Uprights, Kingpin, and Articulation Plate to the new MoFlo-spec components to ensure proper fitment and performance.
MoFlo is not compatible with Lean Assists or Lean Limiters
